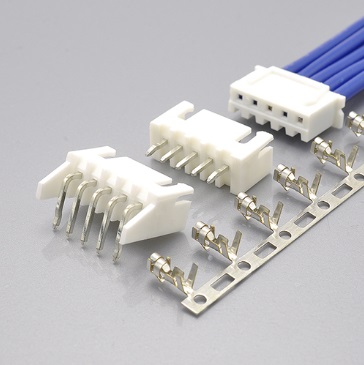

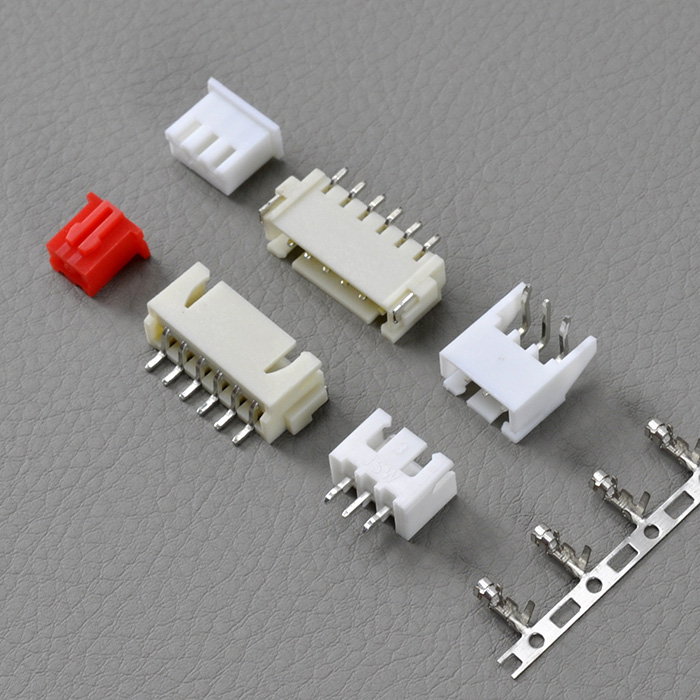

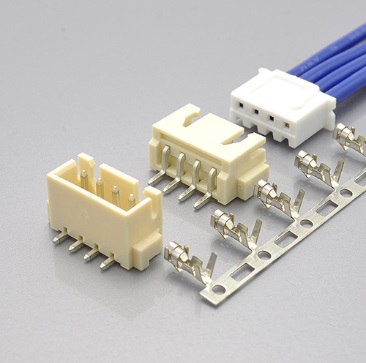

2.50mm Pitch JST XH Type Wire To Board Connector

  • Model: KLS1-2.50
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

2.50mm Pitch JST XH Type Wire To Board Connector

Order information:
KLS1-2.50-XX-H
Pitch:2.50mm
XX-No.of 02~20 pins

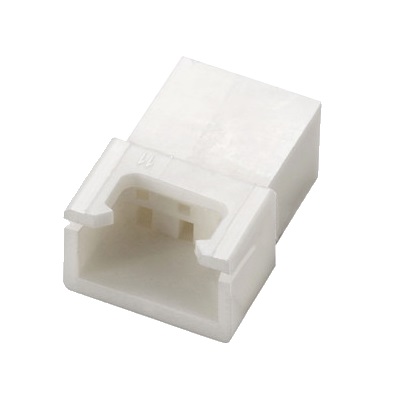

H FH-Housing  T MT-Terminal  S-Straight male pin R-Right angle male pin  VM-Vertical SMT Pin  RM-Horizontal SMT Pin

Specifications
◆Material: PA66/LCP UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1000V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range  : AWG#22~#30
