PCB Spacer Supports

Home > Products > Wiring Accessories > PCB Spacer Supports > Details

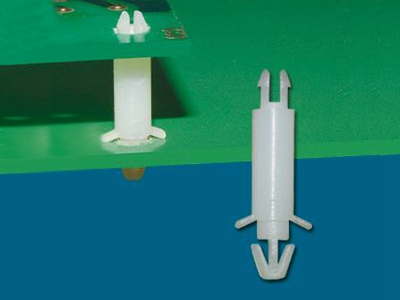

2.5/3.0mm Spacer Support

  • Model: KLS8-0235
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature:  0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H  50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance:    B-130°C  (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools
P/N A UPPER  CHASSIS  Color Packing
PCB Hole PCB THICKNESS PCB Hole PCB THICKNESS
　 mm mm mm mm mm 　 pcs
L-KLS8-0235-LCA-03 3.2 2.5 1.0~1.7 3.0 1.0~1.7 Natural 2000
L-KLS8-0235-LCA-04 4.0 2.5 1.0~1.7 3.0 1.0~1.7 Natural 2000
L-KLS8-0235-LCA-05 5.0 2.5 1.0~1.7 3.0 1.0~1.7 Natural 2000
L-KLS8-0235-LCA-06 6.3 2.5 1.0~1.7 3.0 1.0~1.7 Natural 2000
L-KLS8-0235-LCA-07 7.0 2.5 1.0~1.7 3.0 1.0~1.7 Natural 2000
L-KLS8-0235-LCA-08 8.0 2.5 1.0~1.7 3.0 1.0~1.7 Natural 2000
L-KLS8-0235-LCA-09 9.0 2.5 1.0~1.7 3.0 1.0~1.7 Natural 2000
L-KLS8-0235-LCA-10 10.0 2.5 1.0~1.7 3.0 1.0~1.7 Natural 2000
L-KLS8-0235-LCA-12 12.0 2.5 1.0~1.7 3.0 1.0~1.7 Natural 2000
L-KLS8-0235-LCA-15 15.8 2.5 1.0~1.7 3.0 1.0~1.7 Natural 2000
