2.00mm Pitch Molex 51005 51006 type wire to wire connector
- Product Details

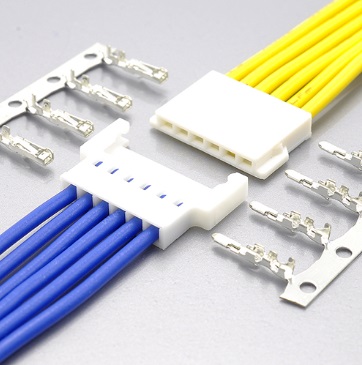

2.00mm Pitch Molex 51005 51006 type wire to wire connector
Order information:
KLS1-XH1-2.00-XX-FH
Pitch:2.00mm
XX-No.of 02~16 pins
MH-Male Housing FH-Female Housing MT-Male Terminal FT-Female Terminal
Specifications
◆Material: PA66 UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:2.0A AC,DC
◆Voltage rating:125V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range : AWG#24~#28
