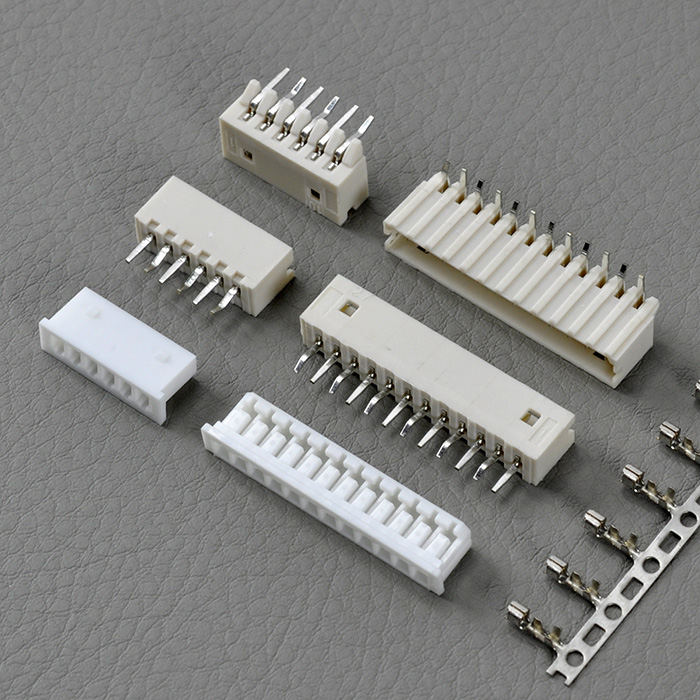

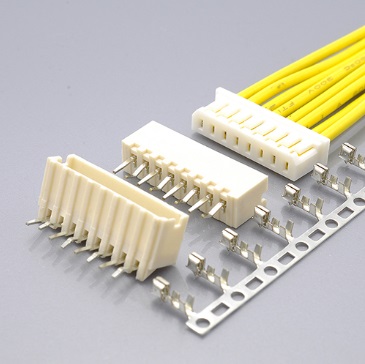

2.00mm Pitch Molex 51004/53014/53015 type Wire to Board Connector
Order information:
KLS1-XL3M-2.00-XX-H
Pitch:2.00mm
XX-No.of 02~15 pins
H-Housing   T-Terminal  S-Straight male pin  R-Right angle male pin
Specifications
◆Material: PA66 UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:2.0A AC,DC
◆Voltage rating:125V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:800V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range  : AWG#24~#30

KLS1-XL3M-2.00.pdf
