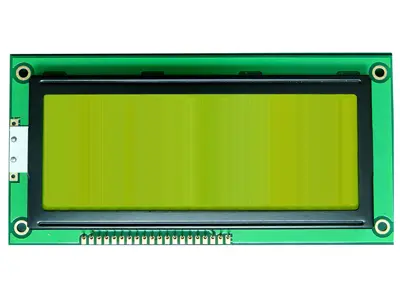

192×64 Graphic Type LCD Module

  • Model: KLS9-19264A
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Display: 192×64 dot-matrix Type
OUTLINE: 130.0×65.0x13.0
V.A.: 104.0×39.0
Dot: 0.458×0.458
View angle:6  O’clock
LCD type: STN/Transflective/Positive/Yellow-Green
Driver Condition:1/64 duty cycle, 1/9 Bias
Backlight type: Yellow green /Side light
Controller: SBN0064G or equivalent
Operating Temp.:-20ºC~+70ºC
