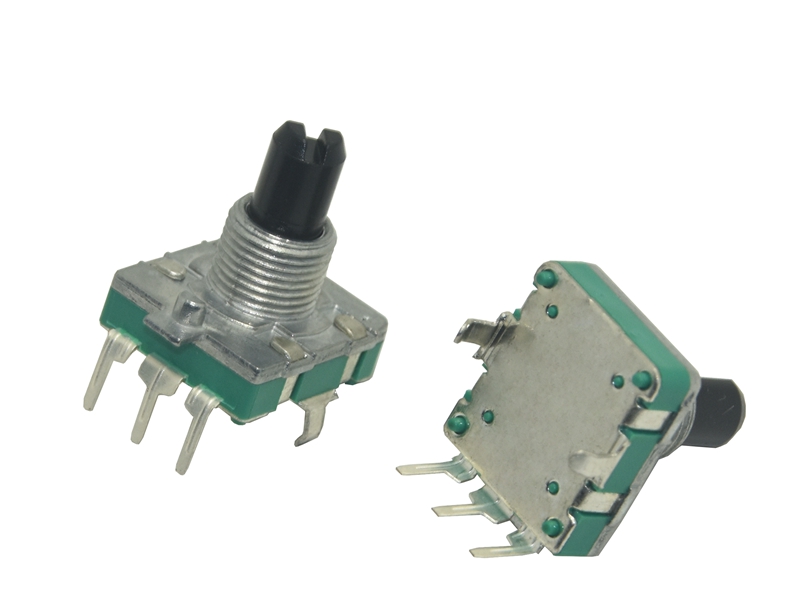

16mm Encoder without switch

  • Model: KLS4-EC1601
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Electrical Characteristics
Rated Power:                DC5V   5mA Max.
Output signal:               A \ B  2signals
Resolution:                  12 Pulses 360°
24 Pulses 360°
Sliding noise:                3mS   Max.
Contact Resistance:     1 Ω  Max.
Insulation resistance:  100MΩ Min. at DC 250V
Withstand voltage:      AC50V / 1 min

Mechanical
Total rotation angle:    360°
Detents Torque:          30~200 gf.cm
Number of Detents:      12 detents Step angle:30°±2°
24 detents Step angle:15°±2°
Rotational Life:            30000±200 cycles per 100gf.cm Min.
Temp. Range:               -10 ° C ~ + 70 ° C
Soldering:                   235 ° C   5Sec.  Max.
