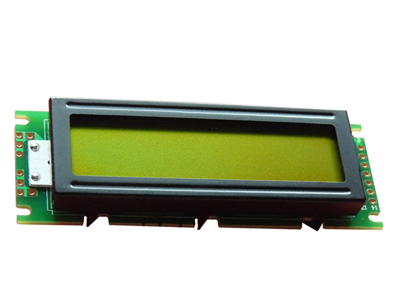

16*2 Character Type LCD Module

  • Model: KLS9-1602K
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Display: 16×2 Character Type
OUTLINE:85.0×29.5×12.5
V.A.: 62.6×16.0
Character Size:2.95*4.35
Dot: 0.55×0.5
View angle:6 O’clock
LCD type: STN/TRANSFLECTIVE/POSITIVE/Yellow-Green
Driver Condition:1/16 duty cycle, 1/5 Bias
Backlight type: Yellow-Green Bottom-Backlight LED
Controller: SPLC780D1 or equivalent
Operating Temp.:-10ºC~+60ºC
