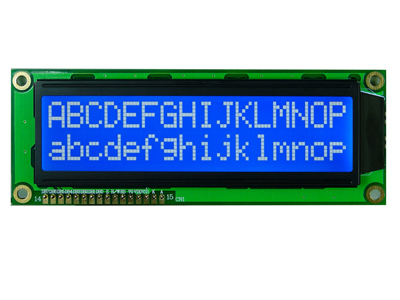

Display: 16×2 Character Type
OUTLINE:122.0×44.0x12.0
V.A.: 99.2×24.0
Character Size:5.2×9.55
Dot: 1.0×1.15
View angle:6  O’clock
LCD type: STN/TRANSMISSIVE/NEGATIVE/BLUE
Driver Condition:1/16 duty cycle, 1/5 Bias
Backlight type: White-side backlight LED
Controller: SPLC780D1 or equivalent
Operating Temp.:-20ºC～+70ºC
