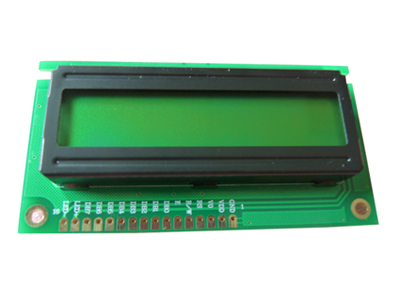

16*2 Character Type LCD Module

  • Model: KLS9-1602D
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Display: 16×2 Character Type
OUTLINE: 84.0×44.0x13.0
V.A.: 64.5×13.8
Character Size:2.95×4.35
Dot: 0.5×0.6
View angle:6  O’clock
LCD type: STN/TRANSFLECTIVE/POSITIVE/Yellow Green
Driver Condition:1/16 duty cycle, 1/5 Bias
Backlight type: Yellow-green bottom-Backlight LED
Controller: SPLC780D1 or equivalent
Operating Temp.:-10ºC~+60ºC
