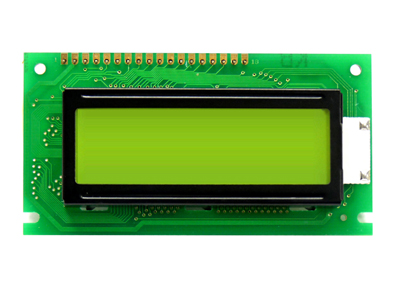

Display: 128×32 dot-matrix Type
OUTLINE: 110.0×65.0x14.5
V.A.: 76.0×25.2
Dot: 0.52×0.52
View angle:6 O’clock
LCD type: STN / Transflective / Positive/ Yellow-Green
Driver Condition:1/32 duty cycle, 1/6 Bias
Backlight type: Yellow-Green/Bottom Backlight
Controller: SBN0064Gor equivalent
Operating Temp.:-10ºC～+60ºC

KLS9-12832A.pdf
