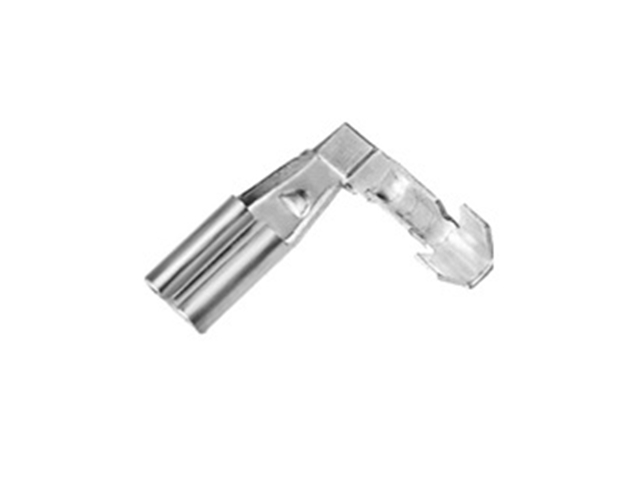

110 Type,Flag Female termial
- Product Details
| P/N | Material | Plating | Dimension(mm) | Wire Range | Q’TY | REMARKS | |||||||
| W | W1 | E | E1 | L | L1 | T | (AWG) | REEL | |||||
| L-KLS8-AFL01-1100300 | Brass | Tin | 3.8 | 5.6 | 11.7 | 0.30 | 20~22 | 10000 | TAB=0.3mm | ||||
| L-KLS8-AFL01-1100500 | Brass | Tin | 3.8 | 5.6 | 11.7 | 0.30 | 20~22 | 10000 | TAB=0.5mm | ||||
| L-KLS8-AFL01-1100800 | Brass | Tin | 3.8 | 5.6 | 11.7 | 0.30 | 20~22 | 10000 | TAB=0.8mm | ||||
