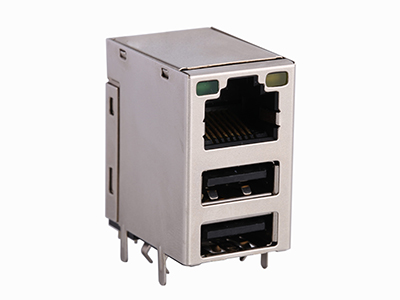

1000 Base RJ45

  • Model: KLS12-TL175
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical Specifications:
Insertion Loss: 1-100MHZ -1.0dB MAX
Return Loss: 1-30MHZ -1 6.0dB MIN
30-60MHZ -14.0dB MIN
60-80MHZ -10.0dB MIN
Cross Talk: 1-30MHZ -40.0dB MIN
30-60MHZ -35.0dB MIN
60-80MHZ -30.0dB MIN
CMR: 1 M-100MHZ -35dB MIN
Hi-Pot: 1500v AC 6S 1mA .
OCL: 350uH MIN @ 100KHZ 100mV 8mA DC
Contacts: 0.35mm thick phos bronze plated with 6u’ gold in contact area
Turn Ratio: 1CT:1CT+/-3%
Housing Material: PBT Black
Operating temperature range: 0 °C~+70 °C
