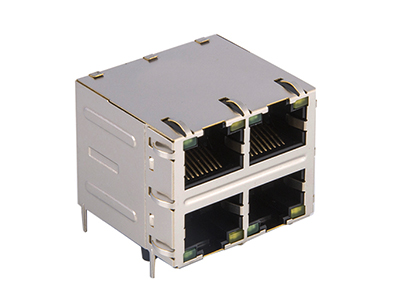

1000 Base 2×2 RJ45

  • Model: KLS12-TL135
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

ELECTRICAL:
RoHS peak wove solder temperature rating 235℃
High performance for maximum EMI suppression
350uH minmum 0CL with 8mA bias current
PoE rating: 15W,350mA,.48V (For PoE Products only)

MECHANICAL:
JACK CAVITY CONFORMS TO FCC RULES AND
REGULATIONS,PART 68 SUBPART F.
INSERTION FORCE: 2 CONTACTS—-350g     4 CONTACTS–5000
6 CONTACTS—-750g    8 CONTACTS–900g
10 CONTACTS—-1050g
RETENTION STRENGTH: 7.7Kgs BETWEEN JACK AND PLUG

DURABILITY:
750 MATING CYCLES Mini

MATERIAL:
HOUSING: 1) GLASS FILLED PA66 (UL 94V-0)
2) GLASS FILLED PA46/LCP (UL 94V-0)
3 GLASS FILLEDPBT(UL 94V-0)
SPRING WIRE: 1) 0.2-0.45mm DIA PHOSPHOR BRONZE GOLD
PLATING OVER NICKE
2) 0.2-0.35mm THICKNESS PHOSPHOR BRONZE ALLOY
SELECTIVE GOLD PLATING OVER NICKEL
SHIELDING: 0.12-0.24mm THICKNESS COPPER ALLOY WITH TIN PLATED
GOLD PLATING: 3u” , 6u”, 15u”, 30u” , 50u”
WORKING TEMPERATURE: -20℃~70℃
TOLERANCES UNLESS OTHERWISE SPECIFIED : 0~10±0.15、10~20±0.2、 20~40±0.25、10~70±0.3≥70±0.4
