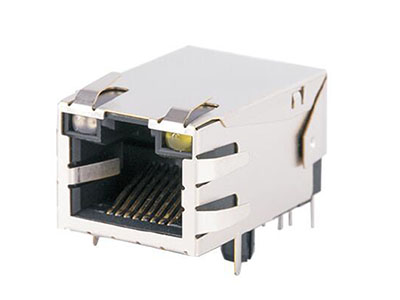

100 Base 1×1 Tab-up RJ45

  • Model: KLS12-TL161
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical Specifications:
Insertion Loss: 1-1 00MHZ -1.0dB MAX
Return L oss: 1-30MHZ -16.0dB MIN
30-60MHZ -14.0dB MIN
60-80MHZ -10.0dB MIN
Cross Talk: 1-30MHZ -40.0dB MIN
30-60MHZ -35.0dB MIN
60-80MHZ -30.0dB MIN
CMR: 1-1 00MHZ -35.0dB MIN
Hi-Pot: 1500vAC 6S 1mA
OCL: 700uH MIN @ 100KHZ 100mV 8mA DC
Contacts: 0.35mm thick phos bronze plated with 6u’ gold in contact area
Turn Ratio: 1CT : 1CT+/-3%
Housing Material: PBT Black
Operating temperature range : -40°C~+85°C
