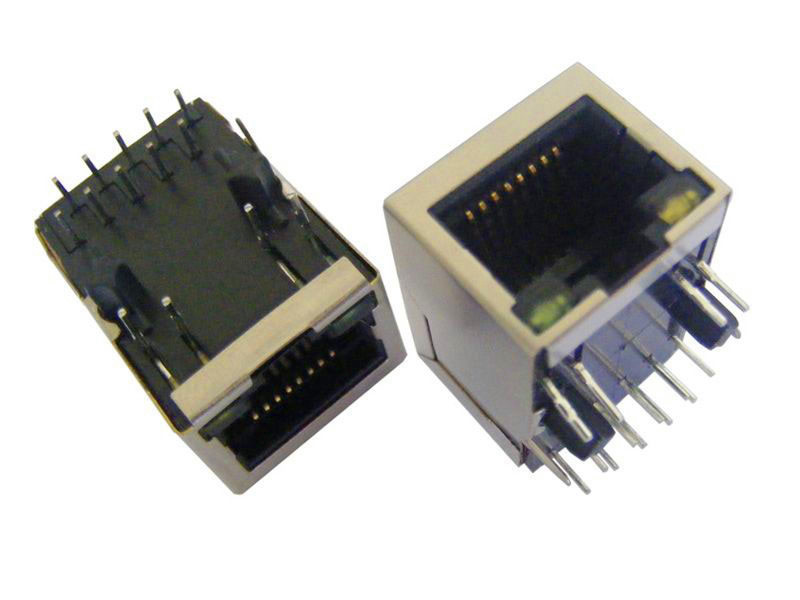

Connect Material:
Housing:Thermoplastic,PBT,UL 94V-0,Black
Contact/Shield:Cooper alloy
Shield Plating:Nickel
Contact Plating:Selective gold 6u” Min

ELECTRICAL SPECIFICATIONS @ 25oC unless otherwise noted:
1.Turn Ratio(+/-2%):
TX=1CT :1CT RX=1CT:1CT
2.Inductance OCL:
350uH Min @100KHz/0.1V ,8mA DC Bias
3.Insertion Loss:
-1.0dB Max @1.0-100MHz
4.Return Loss:
-20dB Min @1-10MHz
-16dB Min @10-30MHz
-12dB Min @30-60MHz
-10dB Min @60-100MHz
5.Cross talk:
-40dB Min @1-30MHz
-35dB Min @30-60MHz
-30dB Min @60-100MHz
6.Common Mode Rejection:
-30dB Min @1-50MHz
-20dB Min @50-150MHz
7.HIPOT TEST :1500V AC 1mA 6S
8.OPERA TING TEMPERA TURE RANGE:0-70°C

KLS12-TL053.pdf
