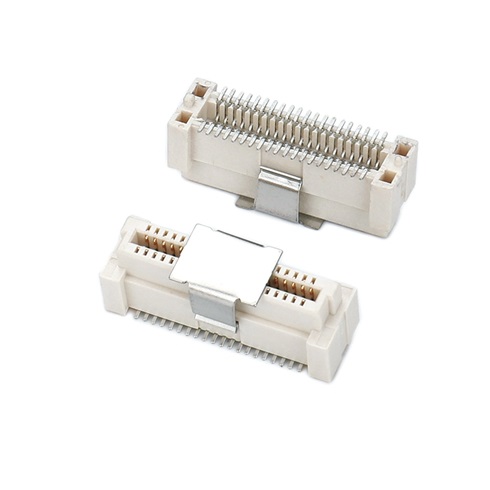

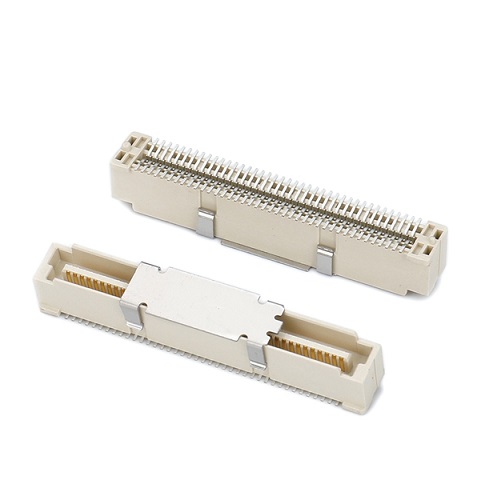

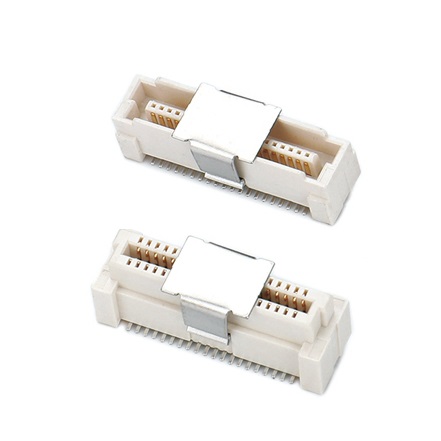

0.80mm Pitch Board to Board Connector

Material:
Housing: Thermo-Plastic.UL94V-0Color:Natural
Conact: Phosphor Bronze,Gold Plated.
CAP: Brass

Specification:
1.Contact resistance: 50mΩ Max.
2.Insulation resistonce: 500MΩ Min at 500V DC
3.Rated voltage: 30V AC DC.
4.Rated current: 0.5A AC DC.
5.Temperature Range: -20°C~+ 85°C.

KLS1-B0708.pdf
